Disc Flattener

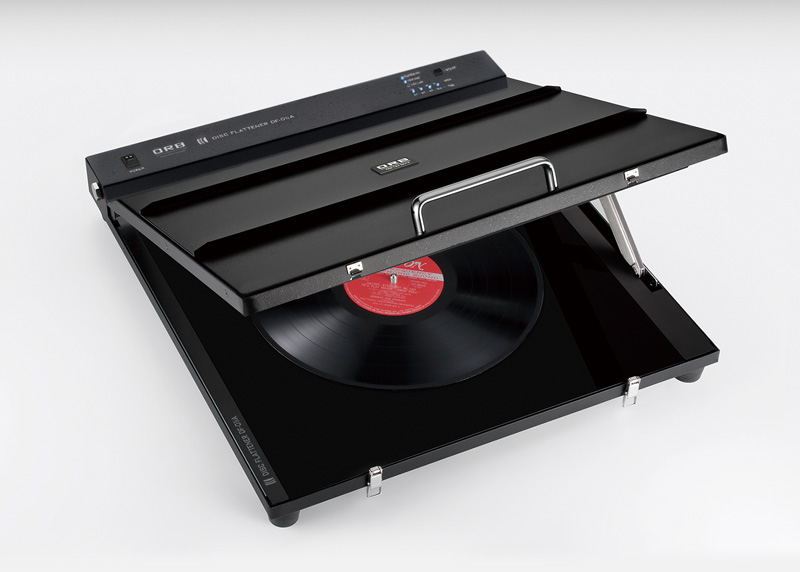

Set Disc

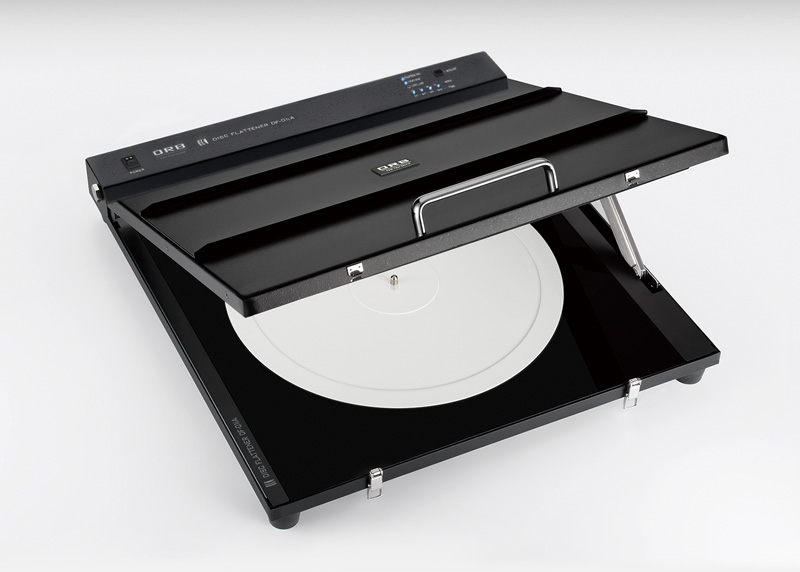

Adapter for 12 inch

Disc Flatter is long seller product and our signature item.This product flattens warped discs and returns them to
their original condition in just a few hours with automatic heating temperature adjustment function.

DF-01iA+ has adapter for disc doesn’t have groove guard such as heavy weight flat disc, the weight over 180g.
How the Disc Flattener Works.
Analog discs are made from polyvinyl chloride, commonly known as vinyl. Because of sensitivity to heat, the storage method you use for your analog vinyl records is important to avoid warps and other damage. Aging can also cause warping of vinyl records, and extra care should always be taken. By gently heating the record evenly and with a uniform pressure the vinyl can be returned to its original flat state without degrading the audio quality. Please note that SP records , heavy weight records, and flexi discs (also known as phonosheet or sooundsheet records) are not supported.

The Structure of Disc Flattener.
The Disc Flattener has semiconductor film applied in the top and bottom heaters of the unit allowing for a uniform heating process combined with an even pressure.
Rating : ・100-125VAC 50/60Hz type
・200-240VAC 50/60Hz type
 (Varies by country)
Over voltage current protection : AC line 5A Fuse protection
Energy consumption : 200W (max)
Size : W:471 D:93 H:493 (mm)
Weitght : About 11kg
Environmental conditions used :

5C/41F-35C/95F (No condensation)
20%~90% (No condensation)
accessories : Adapter for 7 inch EP × 1 set
Adapter for 7 inch × 2 set
Adapter for 10 inch × 2 set
Adapter for 12 inch × 2 set
Country of manufacture : Made in JAPAN

Size Disc
(Turn speed)

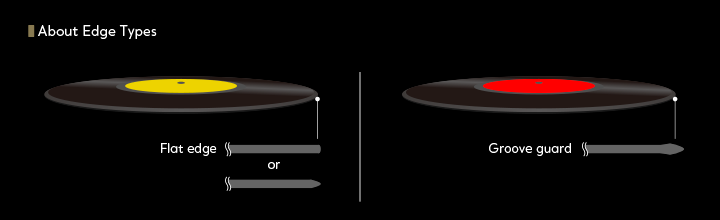

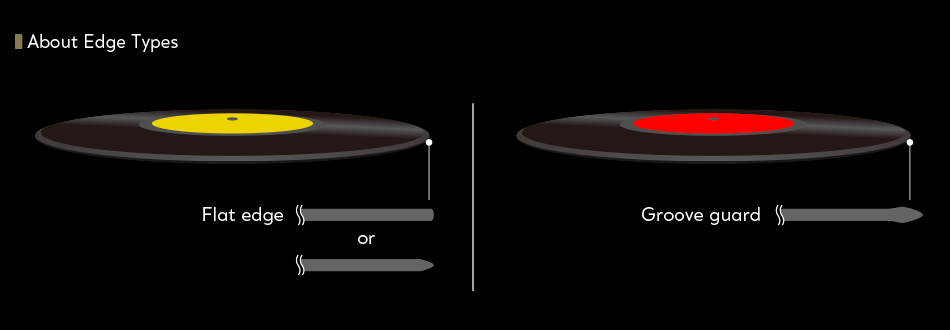

Edge type DF-01iA
( Product information )
30cm (12inch) LP(33 1/3)
Groove guard
Flat edge ×
SP (78) Flat edge × ×
25cm (10inch) LP (33 1/3) Groove guard
Flat edge ×
SP (78) Flat edge × ×
17cm (7inch) EP (45)
Compact (33 1/3)
Groove guard
Flat edge ×
