DF-01iA



DF-01iA

Spacer

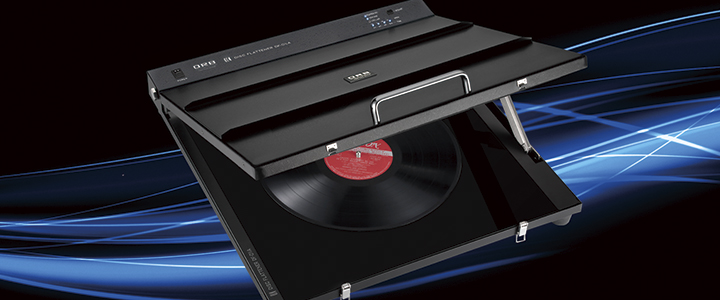

Disc Flattener


Close



Open



Set Disc

Disc Flatter is long seller product and our signature item.This product flattens warped discs and returns them to
their original condition in just a few hours with automatic heating temperature adjustment function.

DF-01iA is the basic model and supports the disc has groove guard.
How the Disc Flattener Works.
Analog discs are made from polyvinyl chloride, commonly known as vinyl. Because of sensitivity to heat, the storage method you use for your analog vinyl records is important to avoid warps and other damage. Aging can also cause warping of vinyl records, and extra care should always be taken. By gently heating the record evenly and with a uniform pressure the vinyl can be returned to its original flat state without degrading the audio quality. Please note that SP records , heavy weight records, and flexi discs (also known as phonosheet or sooundsheet records) are not supported.

The Structure of Disc Flattener.
The Disc Flattener has semiconductor film applied in the top and bottom heaters of the unit allowing for a uniform heating process combined with an even pressure.
Rating : ・100-125VAC 50/60Hz type
・200-240VAC 50/60Hz type
 (Varies by country)
Over voltage current protection : AC line 5A Fuse protection
Energy consumption : 200W (max)
Size : W:471 D:93 H:493 (mm)
Weitght : About 11kg
Environmental conditions used :
・Temperature
・Humidity

5C/41F-35C/95F (No condensation)
20%~90% (No condensation)
Country of manufacture : Made in JAPAN


Size Disc
(Turn speed)
Edge type DF-01iA DF-01iA+
( Product information )
30cm (12inch) LP(33 1/3)
Single(45)
Groove guard
Flat edge ×
Shellac Records
(78rpm)
Flat edge × ×
25cm (10inch) LP (33 1/3) Groove guard
Flat edge ×
Shellac Records
(78rpm)
Flat edge × ×
17cm (7inch) EP (45)
Compact (33 1/3)
Groove guard
Flat edge ×
