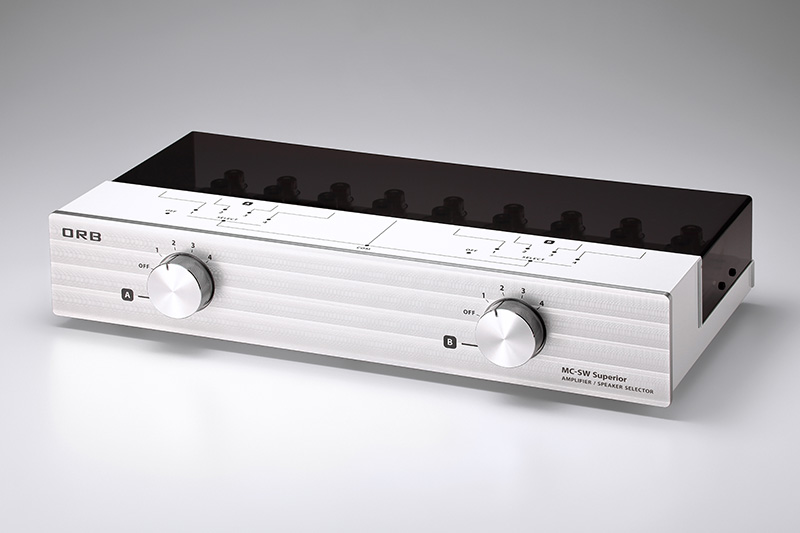

MC-SW Superior

Speaker / Amp Selector

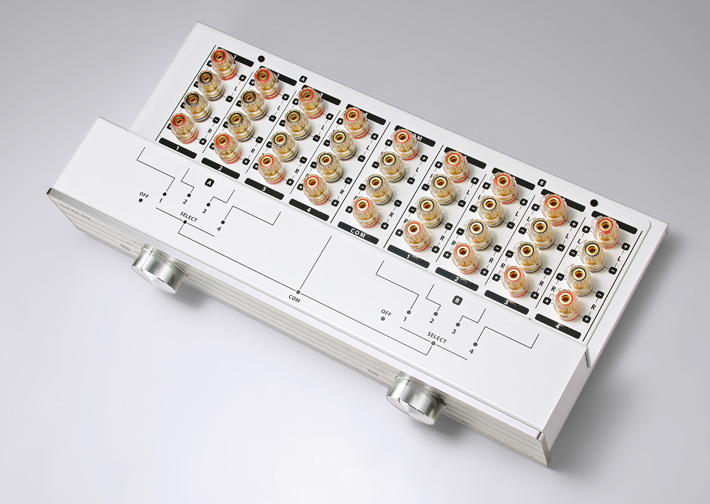

Top view

ORB selector series is one of our staple items!
This product has thickness body to suppress the vibration, and uses high purity gold plating for binding post. 3.5φ aluminum milling knob gives the exclusive design this product.
ORB selector series has an extensive lineup to be usable with every system!
Made with High-quality parts for high-end audio.
Silver-plated is used in the point of contact of rotary switch. The gold plate is used in the terminal (multi binding post). Those specifications enable to low contact resistance. Moreover, it wired the use of speaker cable 'INNOVA TS7' of ORB in equal length.

Designed for high-end speaker cable.
The binding post makes it possible the speaker cable of big diameter to connect though low price and compact design. The speaker cable with Y Rag (8φ terminal: ORB HL-YLi) and the banana terminal can be connected as well.

4to4 or 1to8 connection is possible.
Both of them are possible.

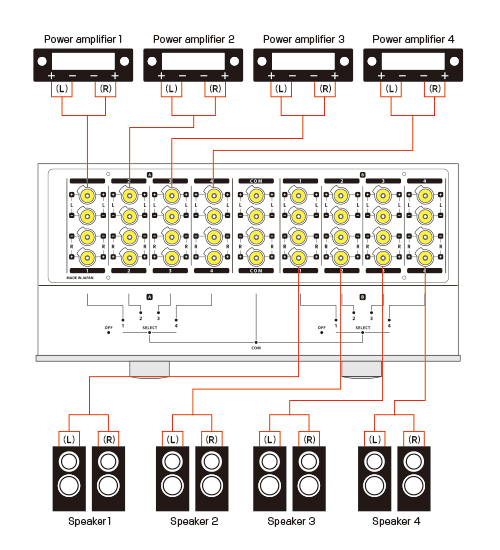

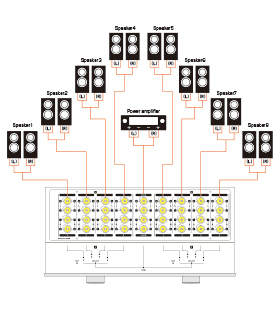

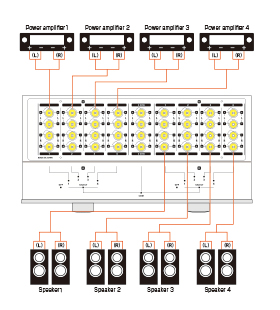

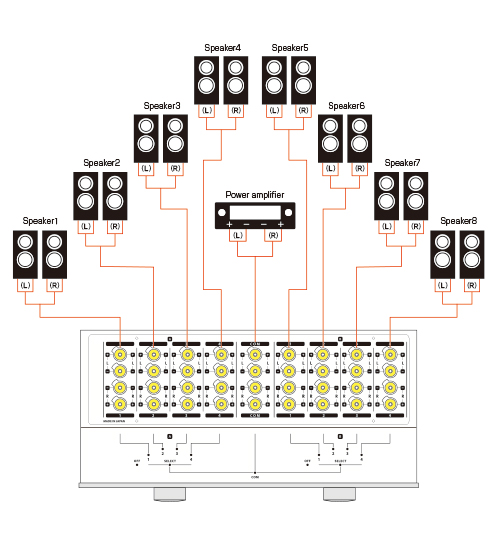

Four amplifier connects to four sets of speakers; One amplifier connect to eight set of speakers.
input : 4 output : 4 / input : 1 output : 8
Switching device : rotary switch,
Non short-circuit Simultaneous two poles +- switching
Circuit resistance : 15mΩ or less between COM and each output
Terminal : Gold-plated binding post
Continuous electric power : 250W
(on condition connected8Ω speaker)
Internal wiring : ORB INNOVA TS7
Size W:430×D:217×H85 mm
Weight 6kg
Country of manufacture : Made in JAPAN
