LS-XW Superior


Line Selector ( for XLR terminal )

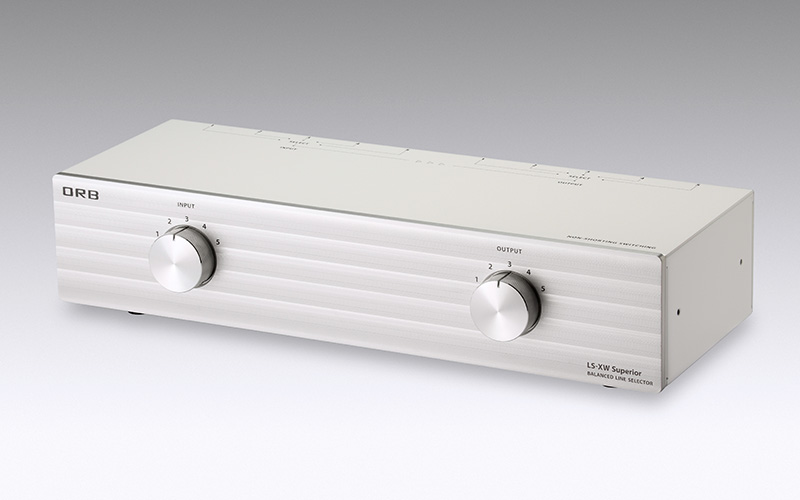

Front

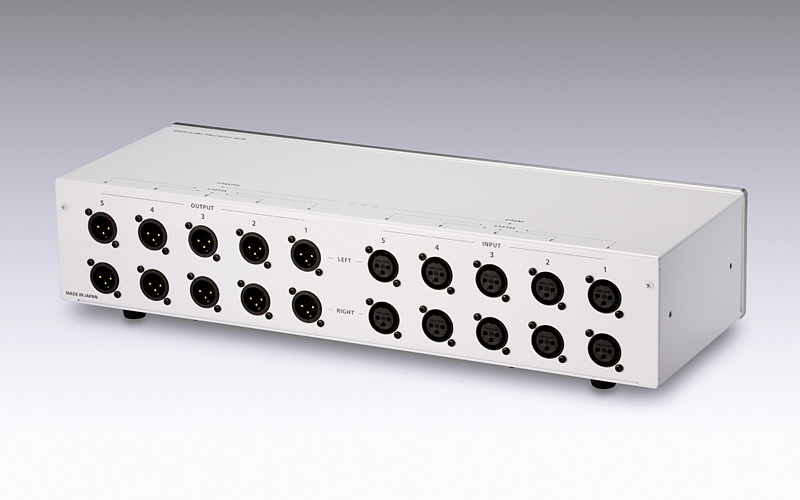

Rear



Mounting blanket




LS-XW Superior is a balance line selector that switches the input and output of the balanced signal by the XLR connector.
High quality parts are used for changeover switches, connectors and internal wiring. It is a high quality selector that conveys the original sound quality as it is, and has a high-class appearance and a low center of gravity structure. It is a high quality model that can be used without a sense of incongruity, even with high-end audio equipment.

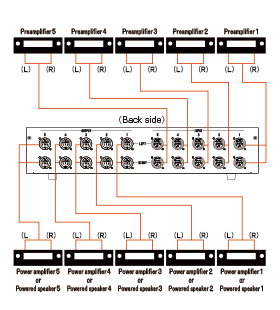

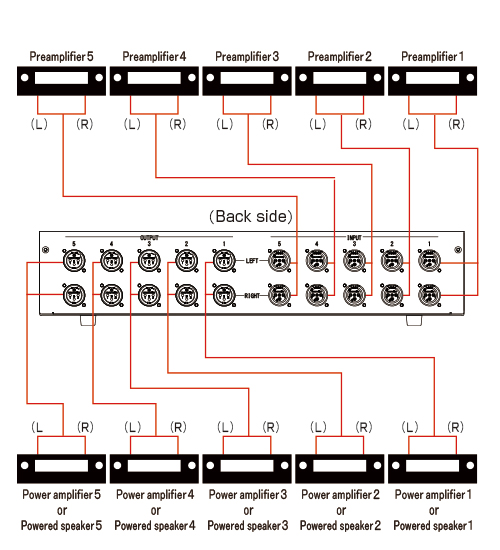

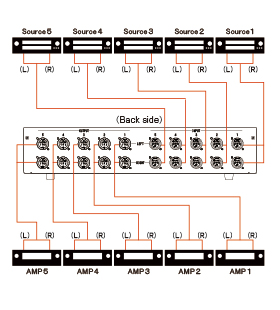

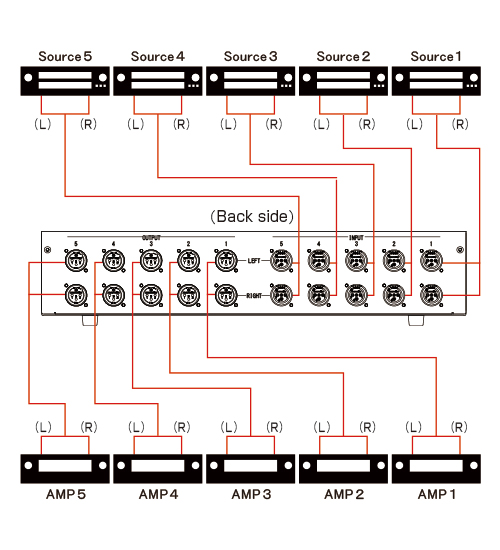

As multi-selector, you can switch and use 5 amplifiers (preamp or pre-main amp) from 5 sources. Alternatively, you can switch and use 5 power amplifiers or powered speakers from 5 preamplifiers as a multi-selec
Blocks vibration and external noise.
We block vibration and foreign noise having a bad influence on sound quality by thick board case and low center of gravity structure with high damping effect.

Gold-plated XLR terminals are used.
Highly reliable contacts have been realized by adopting gold-plated XLR terminals for the input and output terminals.

Comes with mounting blanket.

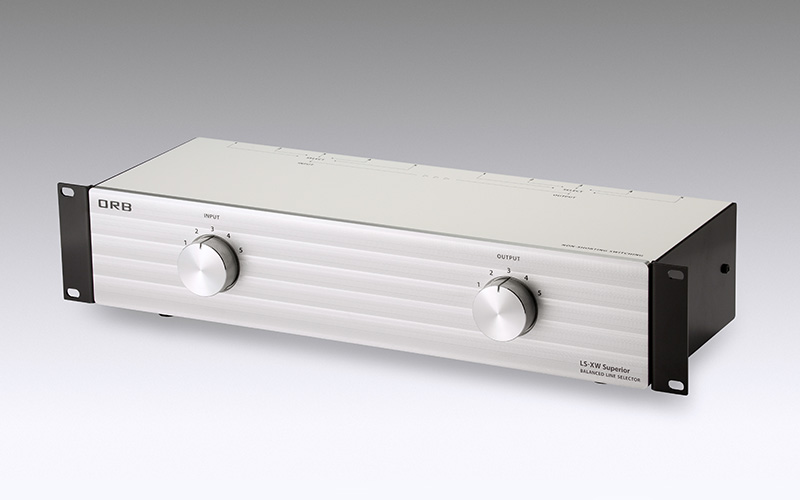

It is possible to install in 19 inches rack by using attached mounting blanket (2U size).
iinput : 5 output : 5
Switching device : rotary switch,
Non short-circuit Simultaneous two poles +- switching
Circuit resistance : 15mΩ or less between COM and each output
Terminal : Gold-plated XLR terminal
Internal wiring : ORB J10 Line Cable
Size : W:430×D:170×H97 mm
Weight : 4.5kg
Accessories : Mounting blanket
Country of manufacture : Made in JAPAN
