LS-X0R Nova


Line Selector ( for XLR terminal )

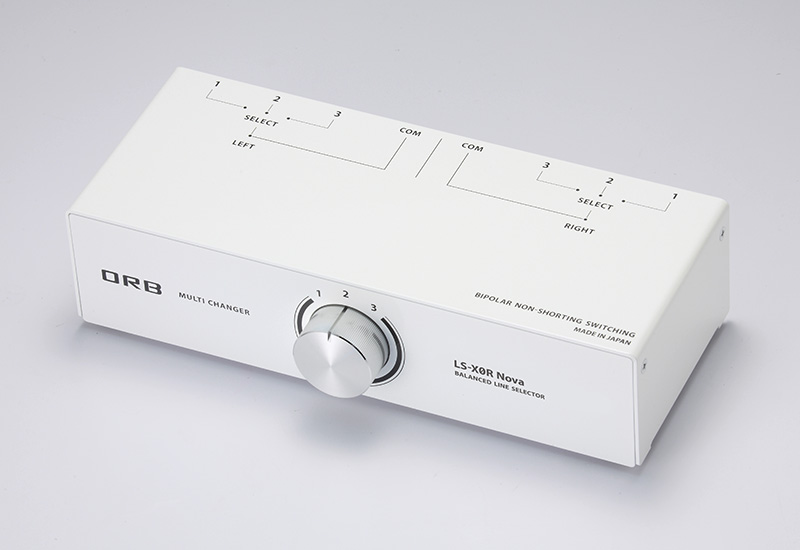

Front

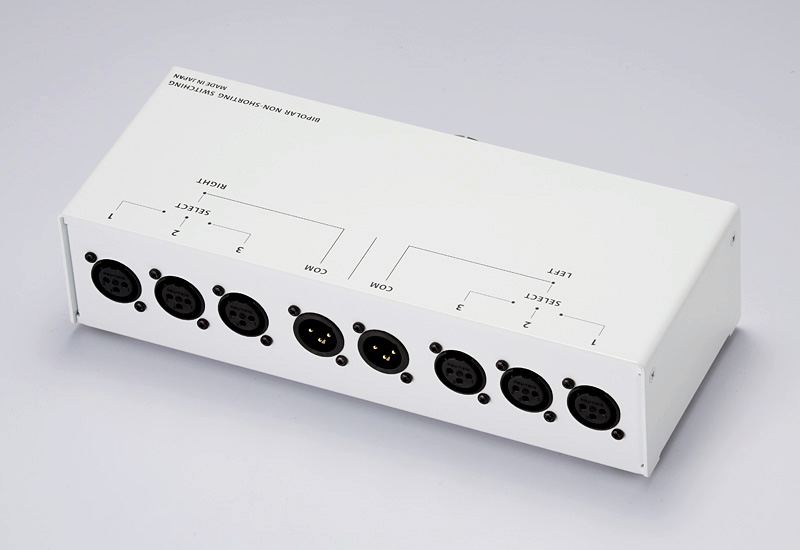

Rear


LS-X0R Nova is a balanced line selector that switches between balanced signal inputs via XLR connectors.
In addition to the rotary switch, high quality parts have been carefully selected for the connectors and internal wiring, and the housing design prevents external noise and vibration to convey the true sound as it should be.

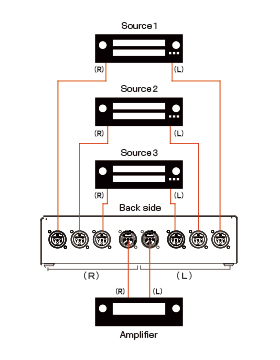

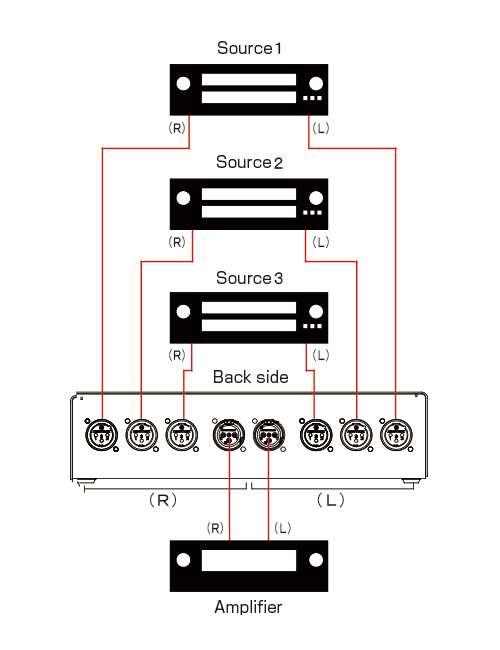

Up to three source devices can be switched and selected for each amplifier (preamplifier or pre-main amplifier).

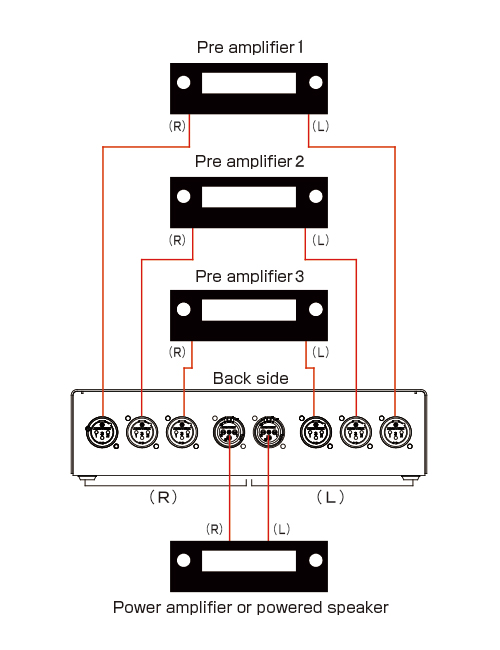

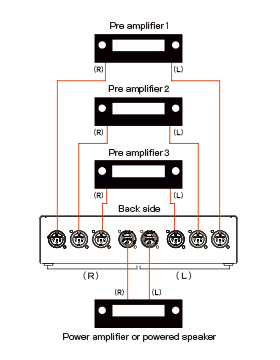

Also, up to three preamplifiers can be switched and selected for each power amplifier or powered speaker.
Blocks vibration and external noise.
The thick-plate housing with high damping effect and low center-of-gravity structure blocks out vibration and external noise that may adversely affect sound quality.

Gold-plated XLR terminals are used.
Highly reliable contacts have been realized by adopting gold-plated XLR terminals for the input and output terminals.

3to1 connection is possible.
Three source(player) eqipments connect to one set of amplifier.
iinput : 3 output : 1
Switching device : rotary switch,
Non short-circuit Simultaneous two poles +- switching
Circuit resistance : 15mΩ or less between COM and each output
Terminal : Gold-plated XLR terminal
Internal wiring : ORB J10 Line Cable
Size : W:250×D:117×H64 mm
Weight : 2.3kg
Country of manufacture : Made in JAPAN
