LS-X0 Nova


Line Selector ( for XLR terminal )

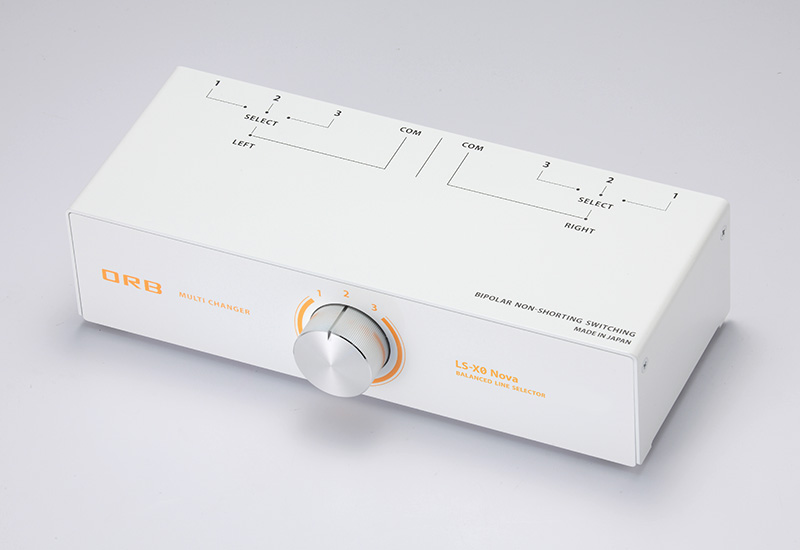

Front

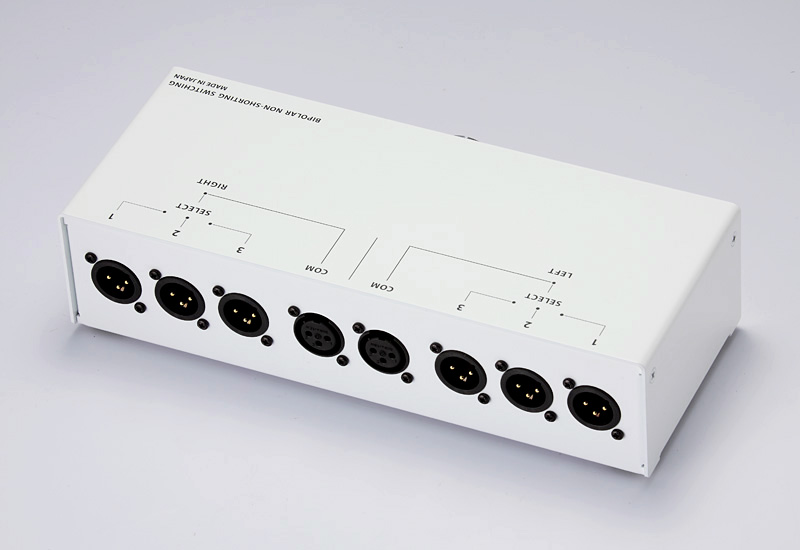

Rear




LS-X0 Nova is a balanced line selector that switches the output of a balanced signal with an XLR connector.
High quality parts are used for the switching switch, connectors, and internal wiring to convey the original sound quality.

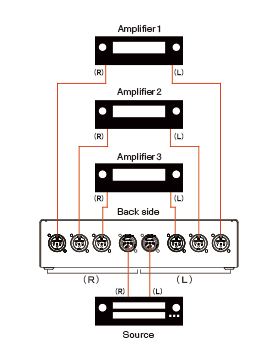

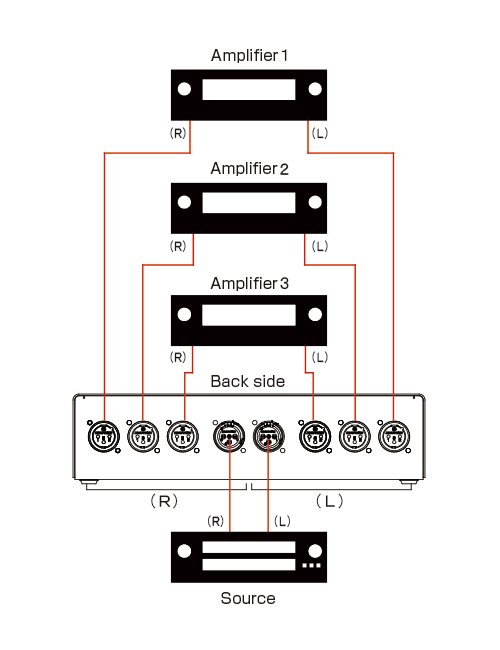

Up to three amplifiers (preamplifier or pre-main amplifier) can be selected from a single source.

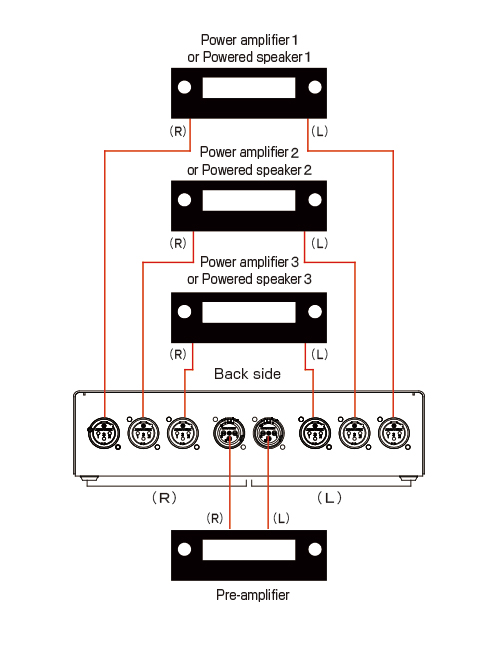

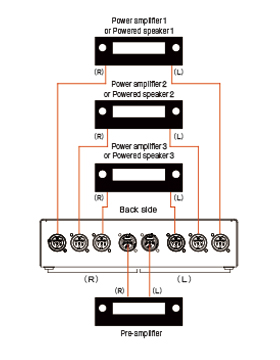

You can also select and switch up to three power amplifiers or powered speakers from one preamplifier.
Blocks vibration and external noise.
The thick-plate housing with high damping effect and low center-of-gravity structure blocks out vibration and external noise that may adversely affect sound quality.

Gold-plated XLR terminals are used.
Highly reliable contacts have been realized by adopting gold-plated XLR terminals for the input and output terminals.

1to3 connection is possible.
Three amplifiers connect to one set of source.
iinput : 1 output : 3
Switching device : rotary switch,
Non short-circuit Simultaneous two poles +- switching
Circuit resistance : 15mΩ or less between COM and each output
Terminal : Gold-plated XLR terminal
Internal wiring : ORB J10 Line Cable
Size : W:250×D:117×H64 mm
Weight : 2.3kg
Country of manufacture : Made in JAPAN
