LS-R0 Nova


Line Selector ( for RCA terminal )

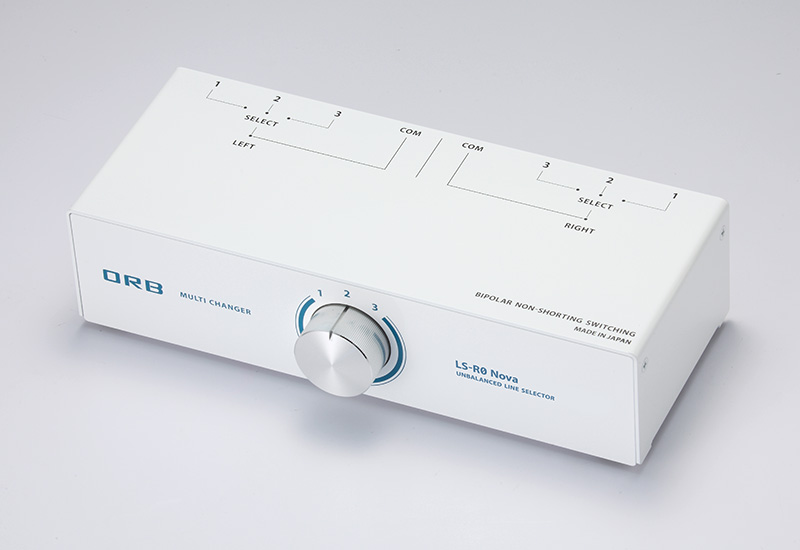

Front

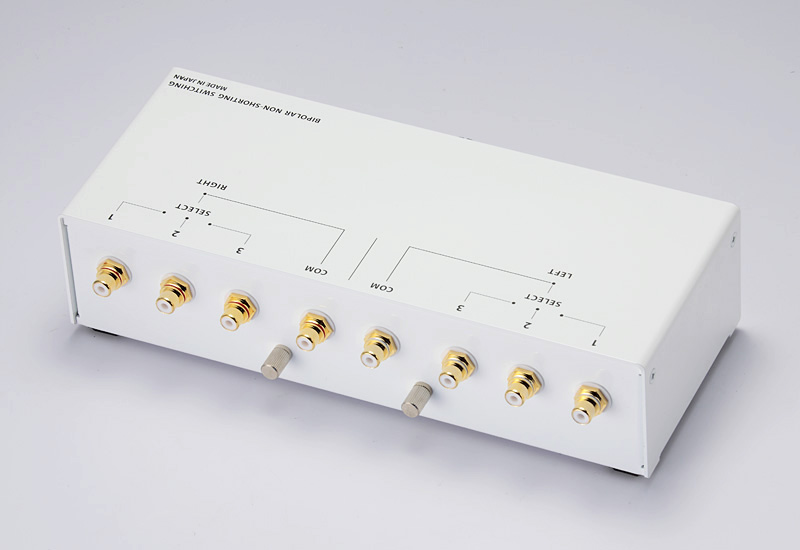

Rear
LS-R0 Nova is a line selector that uses RCA connectors to switch between input and output signals.
High quality parts are used for switches, connectors, and internal wiring to convey the original sound quality.

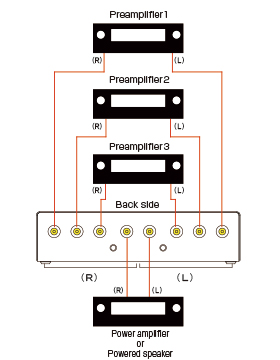

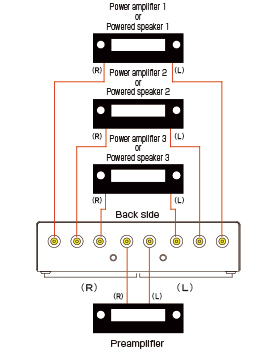

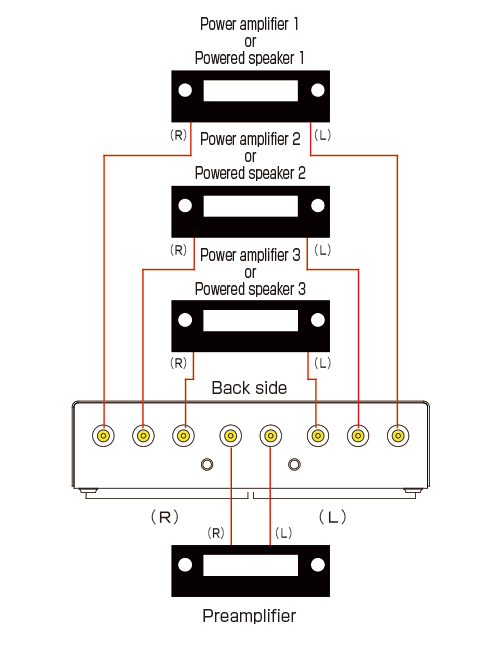

Up to three amplifiers (preamplifier or pre-main amplifier) can be selected for one source device.
Also, up to three source devices can be switched to one amplifier (preamplifier or pre-main amplifier).
Blocks vibration and external noise.
The thick-plate housing with high damping effect and low center-of-gravity structure blocks out vibration and external noise that may adversely affect sound quality.

Gold-plated RCA terminals are used.
Gold-plated RCA terminals for input and output terminals provide highly reliable contacts.

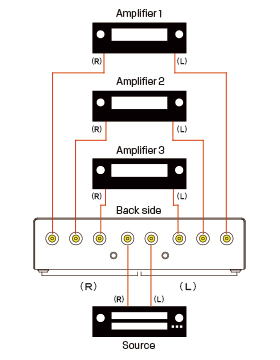

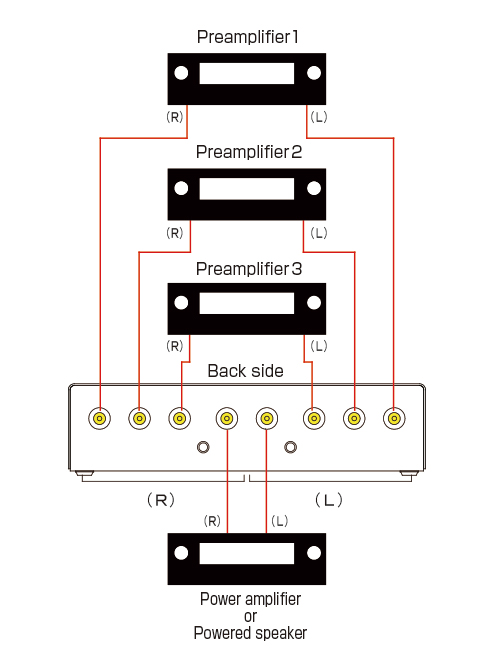

1to3 and 3to1 connection is possible.

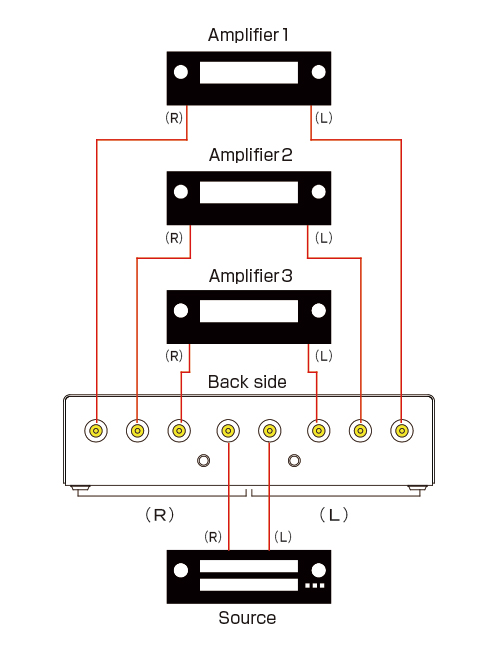

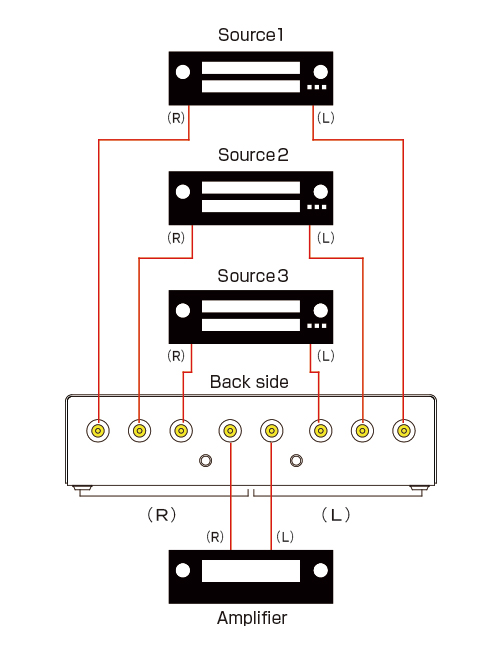

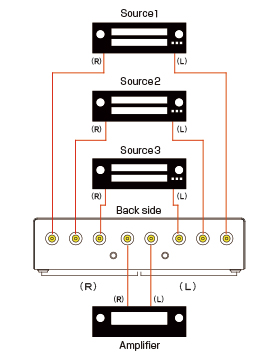

One amplifier connects to three source(player) equipments; Three amplifiers connect to one set of source.
iinput : 1 output : 3 / input : 3 output : 1
Switching device : rotary switch,
Non short-circuit Simultaneous two poles +- switching
Circuit resistance : 15mΩ or less between COM and each output
Terminal : Gold-plated RCA terminal
Internal wiring : ORB J7 Line Cable
Size : W:250×D:128×H64 mm
Weight : 2.4kg
Country of manufacture : Made in JAPAN
